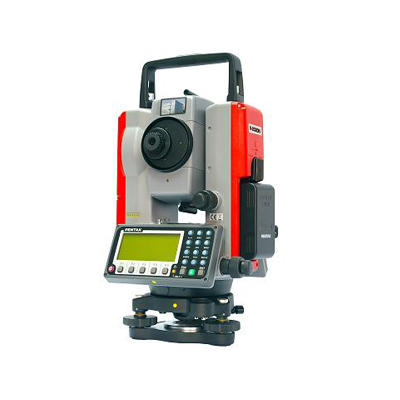

PENTAX R202NE TOTAL STATION

Name: PENTAX R202NE TOTAL STATION
Brand: Pentax
Price: 1 USD

Buy cheap PENTAX R202NE TOTAL STATION product

Place of Origin : China

Brand Name : Pentax

Model Number : R202NE Total Station

MOQ : 1pc

Packaging Details : with standard exporting package

Delivery Time : within 3-5work days after the goods are paid .

Payment Terms : TT ,western Union

Supply Ability : 10000 Per Year

Contact Now

Specifications
1.PENTAX R202NE TOTAL STATION
2.Reflectorless Range 350m

PENTAX R202NE TOTAL STATION

PENTAX R202NE TOTAL STATION
Item specifics
Place of Origin: Shanghai China (Mainland)
Brand Name: Pentax
Model Number: R-202NE
accuracy: 2"
color: white and red

Instrument type			R-202NE		R-202NE(POWER)
Telescope	object diameter	45mm( EDM 45mm)
	magnification	30 ×
	field view	1°30
	resolving power	3 "
	minimum focus	1.0m (manual focus)
Distance measurement	Range miniprism	1.5m-800m(1000m)
	Range 1 prism	2,200m
	Ramge 3 prism	3,000m
	Range prismless	270m		350m
	Accuracy with prism	±(2mm+2ppm×D)
	Accuracy prismless	±(3mm+2ppm×D)
Measure time	Regular measuremetn	2.0seconds(normal),1.2 seconds(quick)
Raw measure mode	Tracking measurement	0.4seconds
Angle measurment	accuracy	2 "
	Measure method	Absolute encode
	Minimum read	1"/5 "
Display	Display	Dual side (numberic)
Tilt correction	Type	Single axis
	Range	±3
Laser plummet		Invisible laser
		Accuracy ±1.0mm(the height of the instrument 1.5m)
Focus range		0.5~∞
Field of view		3°30
Working condition	Anti-water and dust	IP54
	temperature	-20°C~+50°C
power	Internal batteries	BP02C
	charger	STD-C03
	Continuouse measure time	8 hours
Other factors	demension	343H×172W×177L
	weight (with batteires	5.4kg
	Communication connector	RS-232C
program	program	<PowerTopo Lite>
	Memeriy capacity	20,000 point
Road software			positive
